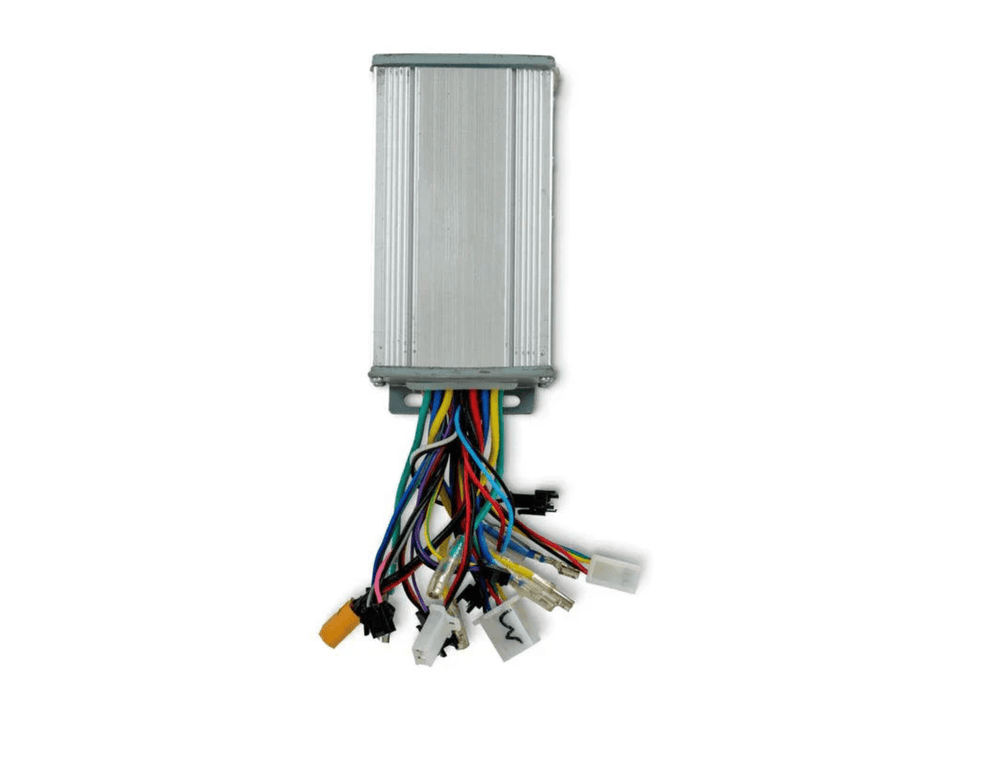

Mobility Scooter Controller Box

Suitable for TM3000 and TM3003 Mobility Scooters

How to Install Controller Box in a Mobility Scooter

• Step 1: Be sure that the scooter is turned off.


• Step 2: Remove the screws from the plastics that is under the seat, then remove the plastic.


• Step 3: Disconnect all the cables from the controller that is currently in the scooter right now.


• Step 4: Connect the wires of the new controller box to the cables that comes from the steering wheel and the motors.

Wires from the Steering Wheel - Wires from the Control Box:

Long Three Cables: Green, Red, Black - Blue, Red, Black

Three Cables: Blue, Yellow, Brown - Orange, Black, PurpleBlack

Three Cables: Green, Red, Black - Pink, Gray, Black

Two Cables: Black, Yellow - Green, BlueWhite

Two Cables: Pink, Gray - Black, White

*While connecting the wires please don’t force the plugs to connect if you are struggling, the forks in the plugs may bend if pressed too hard. *
